Vintage

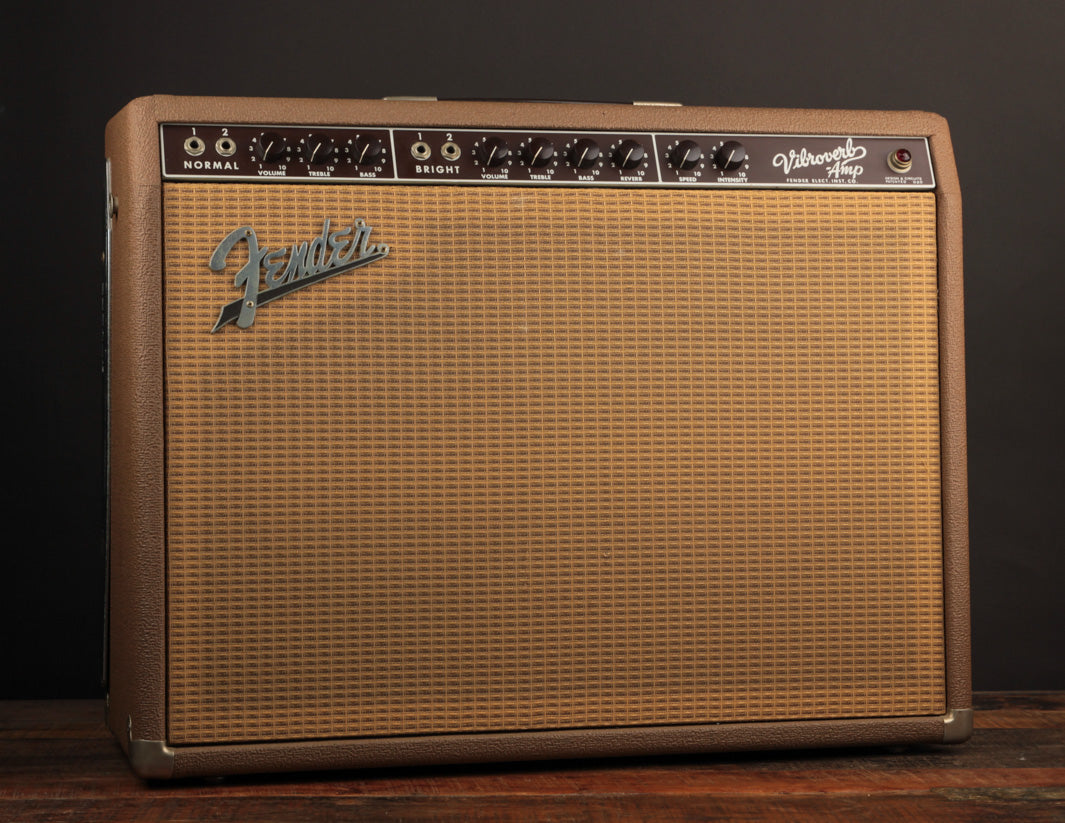

Fender 6G16 Vibroverb Amp (1963)

Regular price $14,995.00
/

Power

35 Watts
Tube Type
6L6/5881
Circuit
6G16
Speakers
Oxford 10K5

  • Payment Via Wire Transfer Or Check Required
  • Expedited Shipping Required

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

The 6G16 Vibroverb is one of the most historically significant guitar amplifiers Fender ever produced. The first Fender combo amp to feature onboard reverb and tremolo, it laid the groundwork for the most influential period of guitar amp design.


If you were to take some of the best ingredients of Tweed and Blackface Era Fender amp design and roll it into one amplifier, it would be the 6G16 Vibroverb. Produced for just one year in 1963, it's become one of the most collectible and sought-after guitar amplifiers on the planet.

The "perfect" tube combo probably doesn't exist, but one could make a strong argument for the Brown Vibroverb. Serving up a unique combination of the 35-watt power section, 2x10 speaker format, distinct reverb circuit, and bias-vary tremolo, it ticks so many boxes for so many players.

This Vibroverb came into our shop via the nephew of the original owner, who'd purchased it brand new on June 29, 1963 from Melody Music Company in Hawthorne, California. How do we know that? Well we've got the original sales receipt to prove it! How cool is that??! We were in a collective state of awe when it was carried through the front door. Not only was it well cared for, it was frankly just not used much, and that was evident from the moment we started to check it out and authenticate it.

The circuit remained 100% untouched since the day it left the factory, and we're talking EVERYTHING. It still sports all of the original tubes - literally every single one is as it was from Fullerton. It's got the impossibly rare original brown two-button footswitch and has its two-prong power cord still attached. The original Oxford 10K5 speakers have never been out of the amp as well.

The original tube chart shows a stamp 'ME' indicating the amplifier rolled out of the factory in May of 1963. Corroborating this with the sales receipt leads us to believe it was trucked just 30 miles due west of the Fullerton factory to Melody Music and sold rather quickly to its original owner.

We enlisted Stan Day to go through the Vibroverb and carefully handle the replacement of only the components critical to safe operation of the amp. Thankfully, it only needed the most basic of service - electrolytic and filter capacitors, and a bias capacitor. Seeing as the amp is in such incredible condition, we opted to have the new caps installed inside the sleeves of the originals, preserving look and presentation of the circuit. Now the amp can be powered up and used without worry, and boy aren't we happy about that!

This Vibroverb is like an All-Star team of tone - it's got the rounder bass and midrange presence of a Tweed amp, with the bounce and air in the treble, like of a Blackface. The soft, musical bias-vary tremolo from a Princeton Reverb and a tube-driven spring reverb circuit like you've never heard in another Fender. Low volume cleans are deep and lush with such an incredible reverb sound, and pushing the amp's volume yields rich, saturated tube breakup. We're not ones to test the limits of original speakers, though, so the amp has not been pushed beyond 4-5 on the Volume control, for preservation's sake.

We're so close to calling condition a Perfect 10 on this one, but our scrutiny and conservative nature has gotten the best of us. The amp was outfitted with period furniture casters on the bottom of the cabinet that have since been removed. The original glides were never taken off and remain in great shape with very little wear. What remains is just the screw holes from the small mounting plates used to support the casters. Thankfully none of that is visible unless you've got the amp upside down. There's also a few scratch/slice markes on the upper back panel on the left side. They're very thin and the tolex remains stable with no signs of curling or delamination from the panel itself. It's only visible at certain angles and blends in with the texture of the tolex for the most part. We're not sure what it's from, but our guess is some sort of incidental contact with a very sharp object, since there's no crude collateral damage. With all of this in mind, we'll settle for a 9.25/10 - hopefully you'll agree that it's undoubtedly one of the cleanest examples out there.

If you've read through the description this far without a bathroom break or a meal...congratulations! In all seriousness, this Vibroverb takes the rank of Numero Uno in the most prized vintage amp to ever find its way into our little shop.


Specs

Power
35 Watts
Controls
Normal Channel / Volume-Treble-Bass; Vibrato Channel / Volume-Treble-Bass-Reverb-Speed-Depth
Switches
Standby On/Off / Power On/Off
Inputs
Normal 1/2 - Vibrato 1/2

Construction

General
Finger-Jointed Pine cabinet / Tube chart 'ME' dating to May 1963
Covering
Original Tolex - Original grill cloth

Components

Tubes
(2) 6L6/5881 (6) 12AX7 (1) 5AR4/GZ34
Speaker
(2) 10" Oxford 10K5 w/ 465-310 codes (10th week of 1963)
Transformers
Original | PT - 606-251 / OT - 606-249 / Choke - 606-2-50 / Reverb - 606-307
Service History
"Vintage Stealth" Recap | new caps installed inside original cap sleeves | Replaced bias cap

Other

Serial #
00332
Dimensions
18½ x 24¾ x 9½”
Weight
Approx. 46lbs
