Description

If you're looking for the ultimate power supply setup for your power-hungry pedalboard, the newly released Cioks Superpower Bundle will do the trick, and then some!

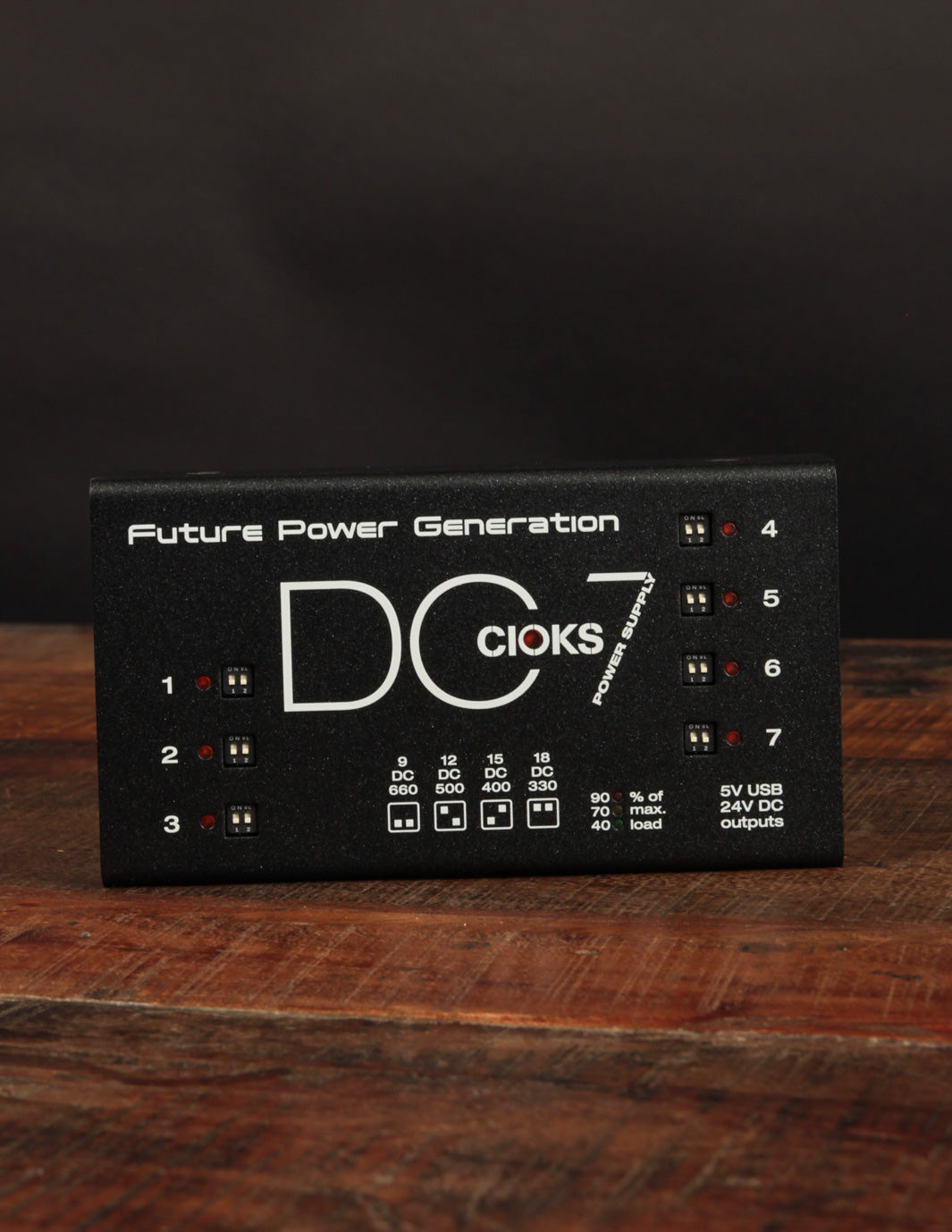

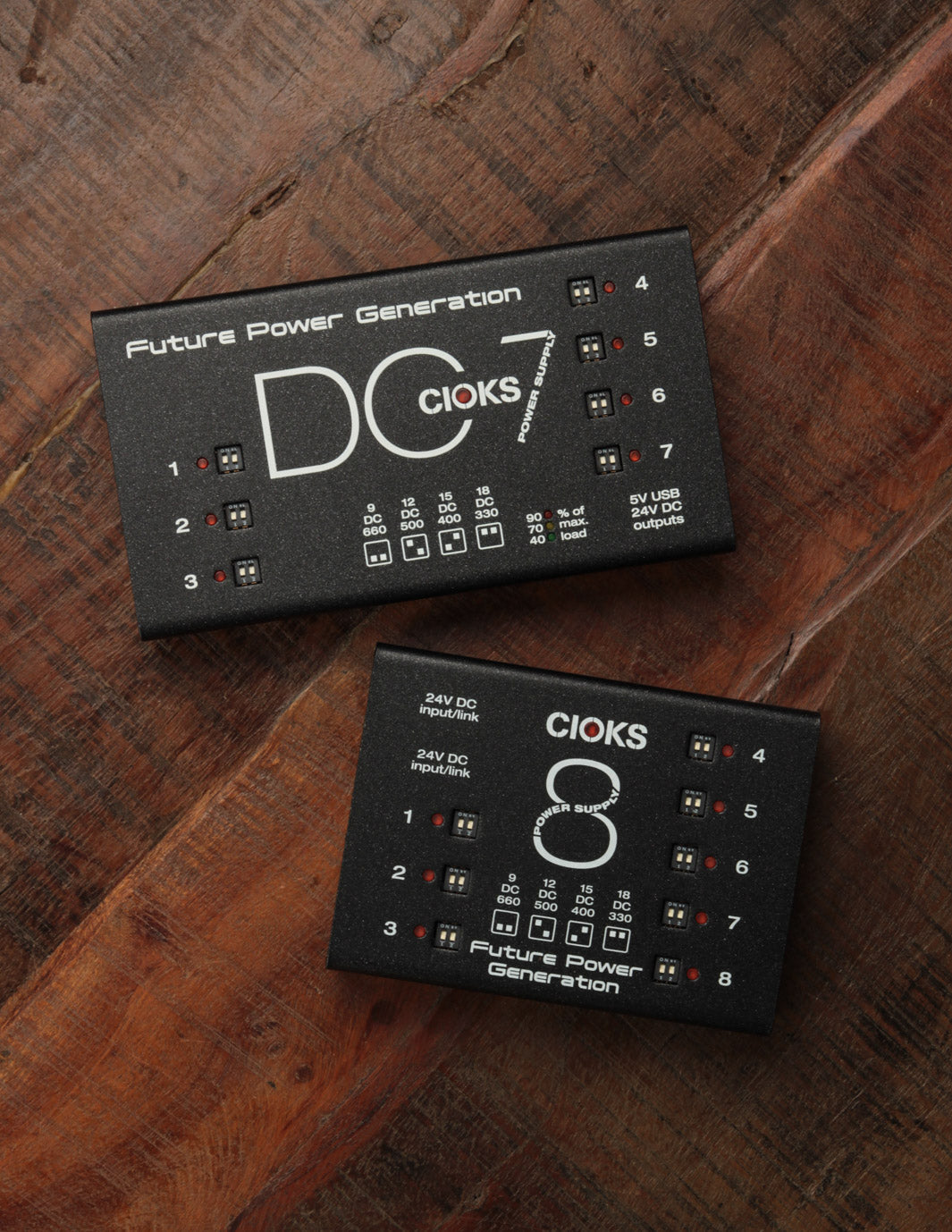

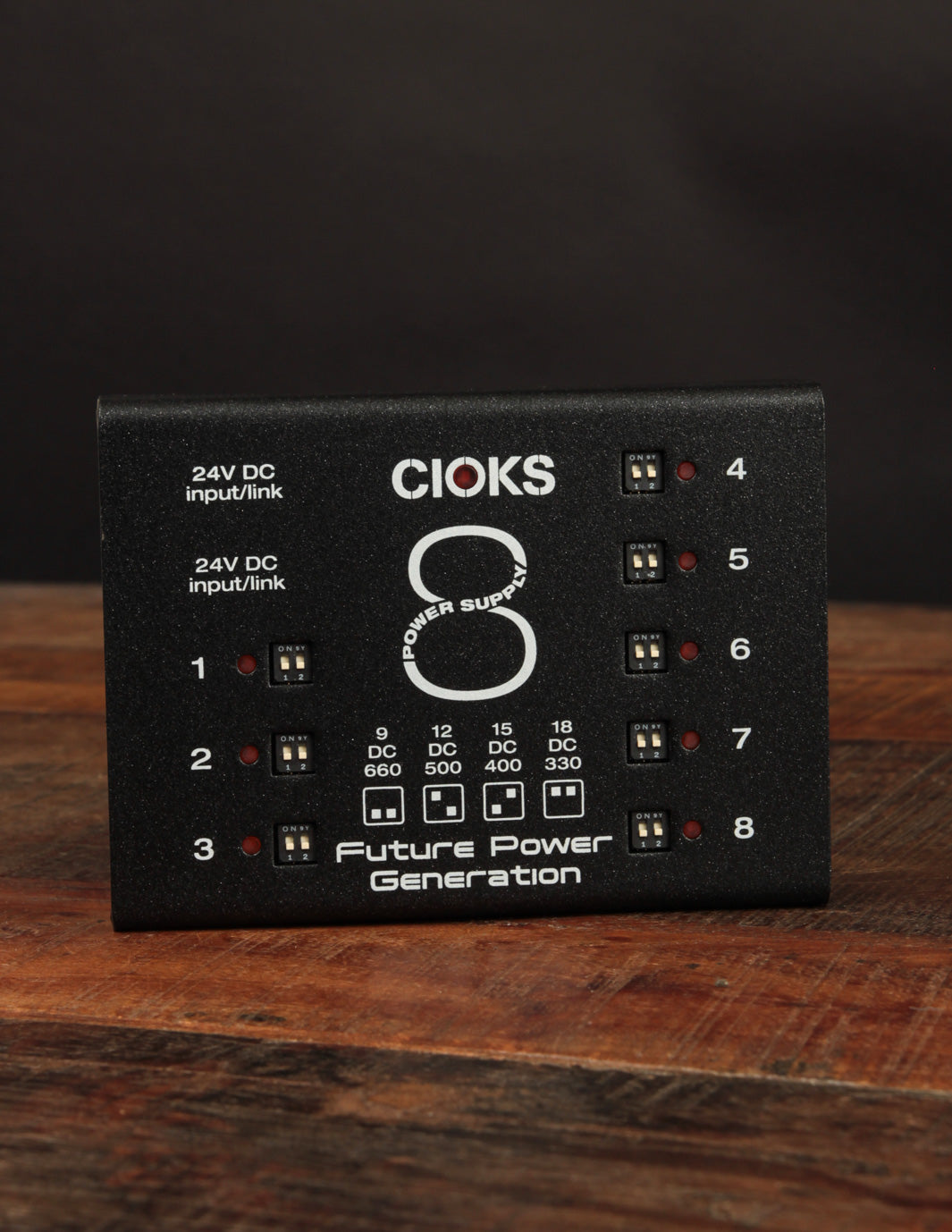

Combining the DC7 with a C8 Expander unit, you're afforded almost limitless options for powering anything from a basic 9V overdrive to a multi-effects processor and everything in between. A single power cable gets the DC7 going and the 24VDC expander cable feeds your satellite PSU for simple setup and configuration. Future-proof your board with a Superpower Bundle from Cioks!

Specs

• Pedalboard Compatible With: Temple Audio and Pedaltrain
• Universal Mains Input: 90~265V AC
• A total of 15 outlets with up to 660 mA (at 9V DC) on each
• 7 isolated DC-outlets 6 W each on CIOKS DC7
• 8 isolated DC-outlets, 6 W each on CIOKS 8 Expander
• Number of Selectable Voltages (per output): 4
• Power Current: 660mA at 9V DC Output, 1000mA at 5V USB Outlet, 2000mA at 24V DC Output
• 42 Watts total maximum output power from all 15 DC outlets combined
• 5V USB-Output for max. 1 A
• 24V DC auxiliary outlet with max. 2A
• Three LED power meter showing the total load of both power supplies

Comes With:

• Mains power cord
• 24 Flex cables included:
• • 2 x Flex 1015 – black with 5.5/2.1 mm centre negative DC plug, 15 cm
  • 6 x Flex 1030 – black with 5.5/2.1 mm centre negative DC plug, 30 cm
  • 4 x Flex 1050 – black with 5.5/2.1 mm centre negative DC plug, 50 cm
  • 2 x Flex 1080 – black with 5.5/2.1 mm centre negative DC plug, 80 cm
  • 2 x Flex 2050 – red with 5.5/2.1 mm centre positive DC plug, 50 cm
  • 2 x 4050 – green with 5.5/2.5 mm centre positive DC plug, 50 cm
  • 2 x Flex 5050 – black with tip positive 3.5 mm Jack plug, 50 cm
  • 2 x Flex 1035 – splitter, black with two 5.5/2.1 mm centre negative DC plugs, 30 and 50 cm
  • 2 x Flex 1533 – 3-way daisy chain, black with three 5.5/2.1 mm centre negative DC, plugs, 30 + 30 + 50 cm
  • 2 DC Link cables included – for connecting CIOKS 8 to the DC7’s 24V DC aux
  • 1 x L2415 – black with EJAI plug at each end, 15 cm
  • 1 x L2480 – black with EJAI plug at each end, 80 cm
• Pedalboard Mounting Hardware: mounting screws, hex key
• User Manual
• Drill Template (Product Sheet)
• Flex Guide
