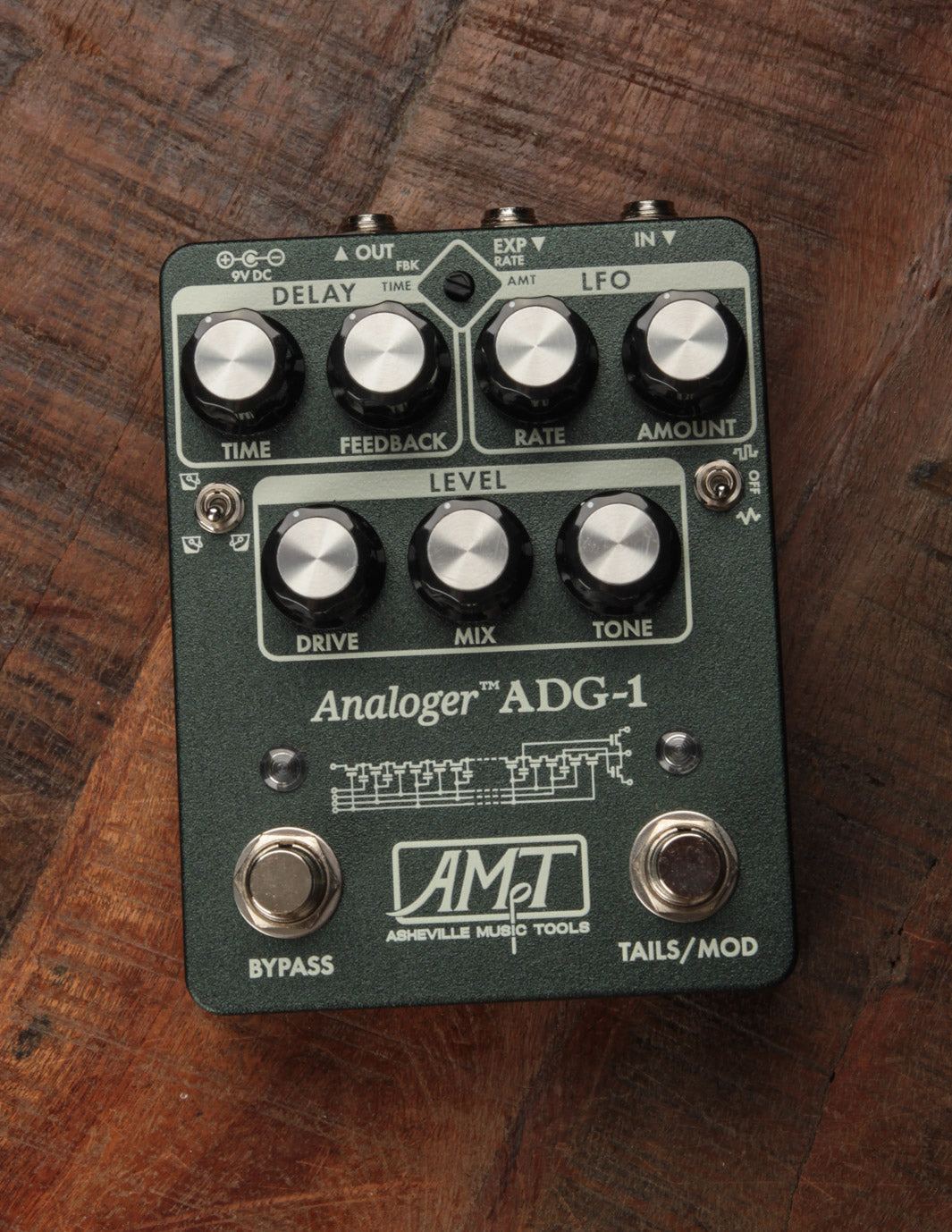

Asheville Music Tools ADG-1 700ms Analog Delay
Brand New
Price
$397.00
Free Shipping
Continental U.S. Only
In stock · Ready to ship
IN STOCKShips from our shop
PACKED WITH CAREInsured and tracked
SINCE 1968Still independent
The ADG-1 delivers lush analog delay tones with up to 700ms of musical repeats and deep control, from slapback to swirling ambient textures.
The ADG-1 wasn’t just built, it was obsessed over. With over 400 carefully chosen components under the hood, it’s a pure analog delay designed for players who care about every nuance of their tone. At its core: a pair of Xvive™ MN3005 BBDs and a high-voltage power supply, offering massive headroom and rich, tape-like echoes.
Everything in the signal path - from the premium audio-grade op amps to the low-noise, non-microphonic caps - is chosen for clarity, stability, and tone. The preamp section features a high-impedance JFET input, great for everything from single-coils to synths, and it can even act as an always-on buffer. Want to push the delay line into subtle overdrive or analog chaos? It can do that, too.
The modulation and feedback sections are equally refined. Analog all the way down - clock generation, modulation LFO, switching logic - you name it. Dial in infinite repeats without runaway, or coax blooming oscillations with real-time control via expression or CV input.
Even the power supply was overbuilt with intention. A high-frequency step-up design ensures ultra-low noise and total isolation between clock, LFO, and signal path, while comprehensive input protection keeps things quiet and reliable on stage or in the studio.
Bottom line? The ADG-1 is a deep, beautifully engineered analog delay with character, clarity, and a feel that only comes from something this thoughtfully made.
Condition: Brand New. Ships by the TME staff from the showroom.
| 1. | 100% Analog signal path |
| 2. | Switchable true bypass or JFET-buffered bypass with switchable trails |
| 3. | Power: 9VDC @ <150mA (85mA Nominal - up to 250mA start up.) |
| 4. | Expression / CV input assignable to Time/Feedback/Mod Amount/Mod Rate (CV range is 0-5V). Ring supplied current limited 5V. |
| 5. | Delay time: 35-700ms in dual BBD mode / 16-350ms in single BBD mode / 27-900ms (or 13-450ms) with external CV control |
| 6. | Input impedance: >1MΩ |
| 7. | Output impedance: 1KΩ Max |
| 8. | Max input level: +15dBu (4.3V RMS) |
| 9. | Max output level: +14dBu (3.9V RMS) |
| 10. | Maximum drive: >22dB (covers attenuation to gain) |
| 11. | Noise Reduction: 2:1 broadband with 12dB HF emphasis |
