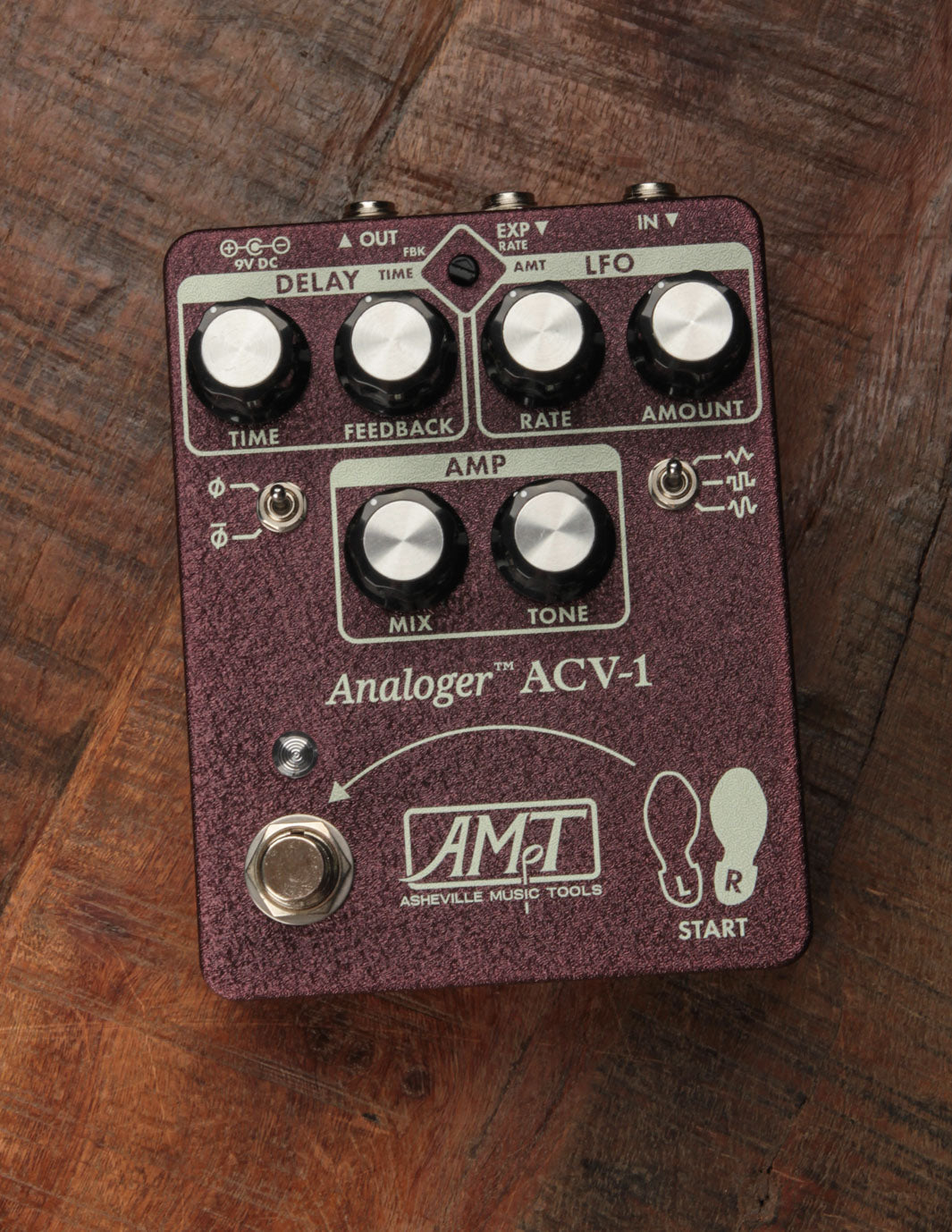

Asheville Music Tools ACV-1 Chorus/Vibrato Time Warping Device

$378.00

Pickup available at 165 Massachusetts Avenue

Usually ready in 1 hour

Have A Question?



This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

An analog chorus and vibrato pedal that merges lush vintage tones with modern modulation control, the ACV-1 delivers deep, dimensional sound and endless creativity.


The ACV-1 is not your average chorus pedal - it’s a fully analog, tone-shaping tool built to traverse decades of modulation textures with precision and soul. At its core lies a 1024-stage Xvive™ MN3007 bucket brigade chip, delivering lush, dimensional chorus and vibrato with unmistakable analog warmth.

What sets the ACV-1 apart? Almost everything. A Time knob lets you morph the delay line for everything from tight '70s shimmer to dripping '80s swirl, slapback delay, and even flanger tones.

The Feedback control, complete with phase and tone shaping, unlocks metallic resonances, vocal-like filters, and haunting, bell-like drones.

You’ll also find multiple LFO waveforms - triangle, sine, and square - for everything from gentle vintage wobble to glitchy pitch jumps and warbly vibrato. And with Rate, Amount, and Mix controls that go from subtle dimensional depth to fully wet warps, you can chase classic chorus tones or dive headfirst into tape-machine mayhem.

For sonic explorers, the CV input extends the playground: modulate pitch, push feedback into self-oscillation, or collapse delay time into lo-fi, ring-modulated weirdness.

Whether you're after a double-tracked shimmer or immersive time-warping chaos, the ACV-1 is analog modulation with a serious creative streak.

Specs

1.
Type: 100% Analog signal and control path.
2.
Bypass Footswitch: effect on/off user selectable True Bypass or JFET Buffered (Accessible by removing ACV-1 Cover)
3.
Power: 9VDC @ <150mA. 70-90mA typical. Up to 250mA start up. Standard pedal center negative 2.1mm x 5.5mm barrel.
4.
Delay Time: 3.1ms - 59ms. 1.9ms - 95ms with LFO and to 155ms with external CV
5.
Feedback: 0 to near infinite. Capable of self-oscillation using tone or EXP/CV input coupled with knob position.
6.
Rate: LFO RATE from 0.1Hz to 14Hz (28Hz with CV control)
7.
Amount: LFO depth control from OFF to 60% of TIME sweep
8.
Mix: Center 50%. Adjust from full wet to full dry
9.
Tone: ~740Hz center tilt filter. Center = Flat to 0.3dB / High +5dB to -10dB / Low +4dB to -7dB.
10.
Phase Switch: 180° phase shift of wet signal and feedback signal.
11.
LFO: Selectable Triangle Sine or slewed Square wave
12.
Expression Switch: 4 position rotary selects Time/Feedback/Rate or Amount external control. All controls are additive to the front panel knob adding extended range. TRS jack usable with CV or Expression pedal (CV range is 0-5V). Ring supplied current limited 5V output. Control input on Tip.
13.
Input impedance: >1MΩ
14.
Output impedance: 1KΩ Max (5k max for buffered bypass)
15.
Max input level: +14.25dBµ (4.0V RMS)
16.
Max output level: +14dBµ (3.9V RMS)
17.
Noise Reduction: 2:1 broadband with 10dB high frequency emphasis
